Ajex & Turner-India produces Trapezoidal Wire Drawing Dies and Sector Shaped Conductor Die with higher quality to meet customer requirements in all aspect of technologies. We are capable to serve our customers with any special tooling like shape drawing dies (trolley, oval, trapezoidal, rectangular, square, triangle, sector, etc.) and sector shaped compacting dies for bunching and stranding line. Fundamentally, this kind is used in the wire design and cables manufacture industries; however, it includes some other areas also, any special product that the customer needs.
TRAPEZOIDAL/SHAPED WIRE DRAWING DIE
Apply to: Rod Break Down Machine / Drawing Machine
Manufacturing Process: Wire Drawing
Samples of finish good product:
Example:

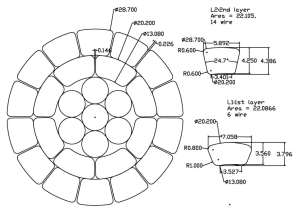

1. Bare Conductor: ACCC, ACCS, ACFR, ACSR(SA)/TW or etc.
2. Underground Cable: High Voltage and low Voltage Underground Power Cable or etc.
Materials:
PCD / (VNT) NANO / Tungsten Carbide / Steel

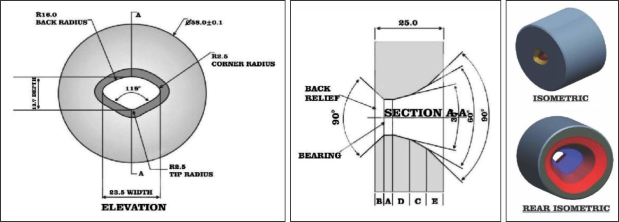

SECTOR SHAPED COMPACTING DIE (D SHAPE SECTOR DIE)
Apply to: Rigid Strander Machine
Manufacturing Process: Compacting Stranded Conductor
Samples of finish good product:
Example: Low Voltage Underground Power Cable etc.
Materials of die:
PCD / (VNT) NANO / Tungsten Carbide
Features:
• Reliable
• Corrosion resistance
• Longer functional life
• New Technologies for Drawn wire and Compacting Stranded Conductor n
