Chant Engineering’s re-reeving machinery provides tension controlled pay-out and re-spooling for boom hoist and main lift line applications.
Chant Engineering, a world leader in testing equipment for the Wire Rope Industry now offers a complete line of Reeling Machines that are available in standard models based on weight, reel size capacities, reel widths and height. Chant Engineering’s lines of Reeling Machines include: Shaftless Gantry Style, Re-Reevers, Take-Up and Pay-Out Machines, and High Speed Coiling Machines. The company’s design and engineering staff can custom build any model for additional height and/or reel width requirements, or for any custom applications.

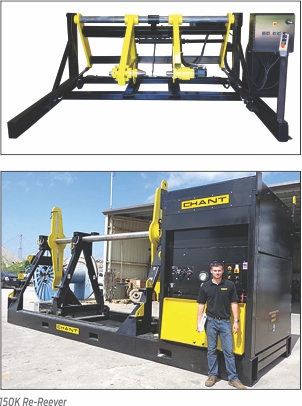

Re-Reever Machines
Chant Engineering’s re-reeving machinery provides tension controlled pay-out and re-spooling for boom hoist and main lift line applications. Available with customized torque capabilities, engine types, and reel dimensions per customer required specifications. These machines are constructed of heavy duty steel and are very durable. They are built strong to suit a rugged, real world industrial and military rigging environment. Line pull and load force to be specified by the customer. It is available in any size or capacity up to 150,000 lb. capacity. Custom self-contained systems are also available.
About our Take-Up / Pay-Out Machines
Chant’s heavy-duty floor mounted shaftless Take-Up / Pay-Out Machines are offered in standard capacities from 5,000- 50,000 lb (2.3 – 27.2 MT), with standard reel sizes ranging up to 96 in (2.4 m) diameter. These machines are designed to reduce processing time and increase productivity.
Chant machines are hydraulically operated. The Shaftless Take-Up Machine has a hydraulic power unit (HPU) and arm controls on each side of the machine. The HPU includes the control panel, hydraulic motor, a pump with heat exchanger, and input power wiring.
Features:
- Joystick controls
- Power On/Off selector switch
- Drive Jog FWD/REV push-button
- Speed Control
- Drive Start/Stop push-button
- Operator control foot pedal
- Adjustable tensioned Take-Up
- Torque adjustment
Options:
- Meters (analog and digital)
- Powered mobile version with operator platform
- Air, electromagnetic, hydraulic, or mechanical tension brakes
- Collapsible coiler for completed coils
- Automatic material traversing system (take-up)
- Tension control (pay-out)
- Wheels for mobility
- Oversize options – width and/or height
- Electric drive
- Powered pay-out and rewind assist
- Handheld pendant control
- Dancer speed control
- Safety guarding, lights and mats available
- Custom machines
